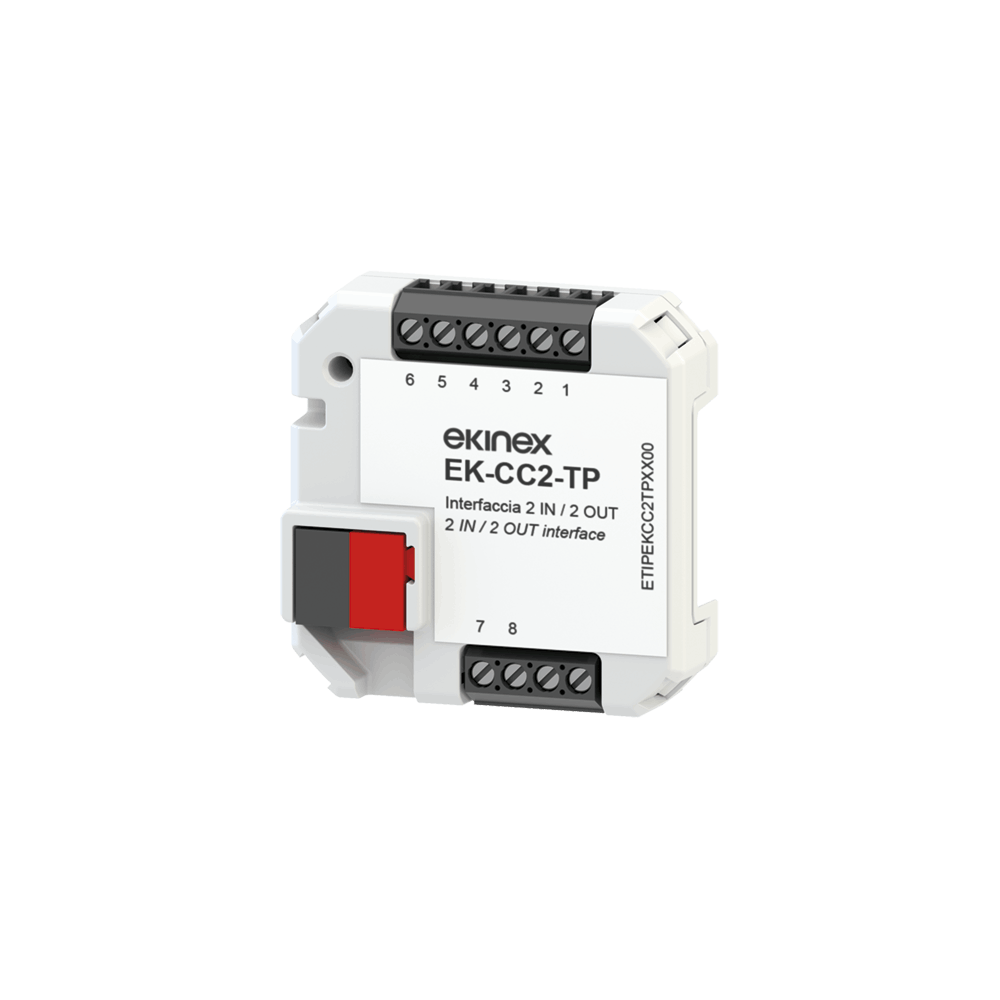

Universal interface CC2 (2 IN / 2 OUT)
EK-CC2-TP
KNX bus device functioning as 2-channel input for the connection of potential-free contacts and 2-channel output for control of low-consumption LED. Mounting in wall box or on 35 mm rail (EN 60715) with the support EK-SMG-35 (to be ordered separately). Power supply via bus. Bus terminal block included in the delivery. To be used in KNX installations for home and building automation.
Universal interface CD2 (4 IN / 4 OUT)
EK-CD2-TP
KNX bus device functioning as 4-channel input for the connection of potential-free contacts and 4-channel output for control of low-consumption LED. Mounting in wall box or on 35 mm rail (EN 60715) with the support EK-SMG-35 (to be ordered separately). Power supply via bus. Bus terminal block included in the delivery. To be used in KNX installations for home and building automation.

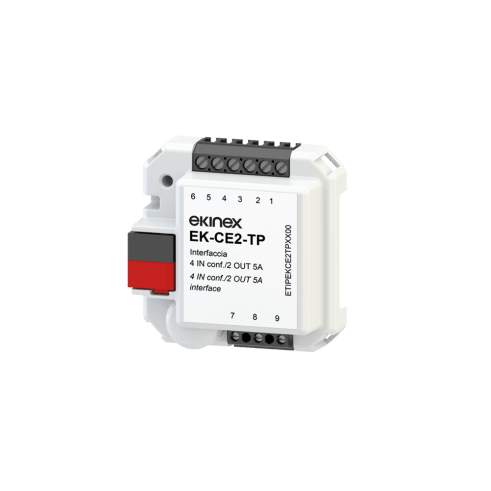

Universal interface CE2 (4 IN conf. / 2 OUT)
EK-CE2-TP
KNX bus device functioning as 4-channel input for the connection of potential-free contacts (1 configurable for NTC temperature probe) and 2-channel output with 5A relais switching and control of loads. Mounting in wall box or on 35 mm rail (EN 60715) with the support EK-SMG-35 (to be ordered separately). Power supply via bus. Bus terminal block included in the delivery. To be used in KNX installations for home and building automation.

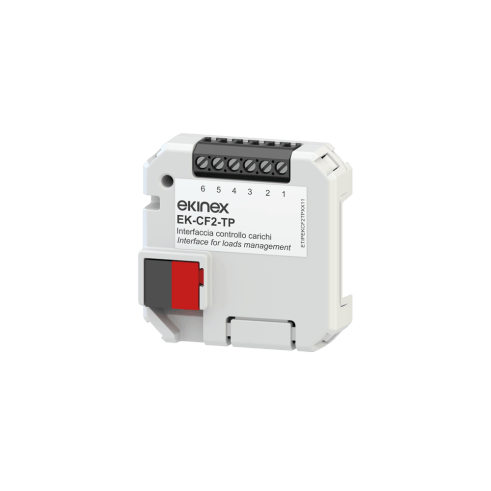

Interface CF2 for load monitoring and control
EK-CF2-TP
nterface for load monitoring and control that can be used for:
- the instantaneous current measurement absorbed by (up to) three single-phase electrical circuits or one three-phase electrical circuit;
- the control of electrical loads with priority detachment (and re-attachment).
