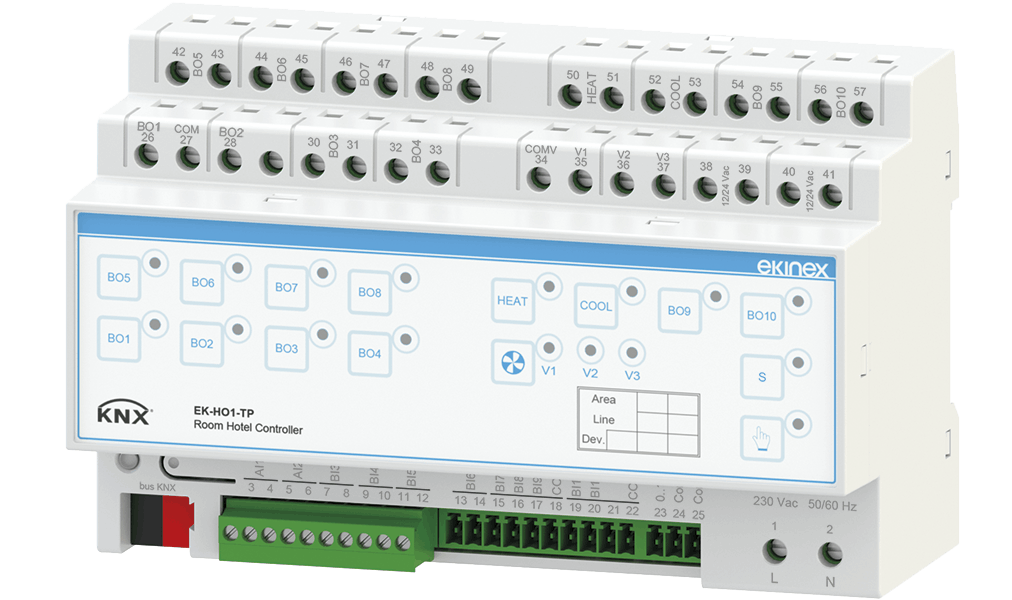

Input/output module for hotel applications

EK-HO1-TP

IInput/output module to manage all functions of a hotel room: lighting, temperature control, shades and input/output indications. The device is equipped with membrane keys for manual control and status indication LEDs; a pushbutton allows to switch mode from automatic to manual and vice versa. The device integrates a KNX bus communication module. It is supplied by the KNX bus; in order to be operational it also requires a 230 Vac voltage. Mounting in distribution board on EN 60715 rail (8 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Mobirise

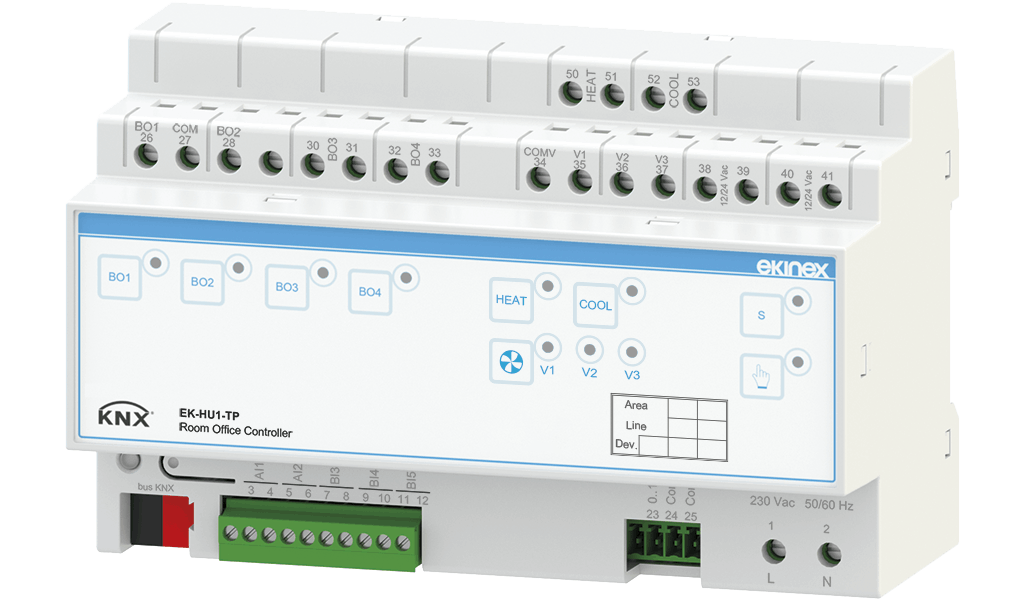

Input/output module for office applications

EK-HU1-TP

Input/output module allows to manage all functions of an office or a open-space zone: lighting, temperature control, shades and input/output indications. The device is equipped with membrane keys for manual control and status indication LEDs; a pushbutton allows to switch mode from automatic to manual and vice versa. The device integrates a KNX bus communication module. It is supplied by the KNX bus; in order to be operational it also requires a 230 Vac voltage. Mounting in distribution board on EN 60715 rail (8 modular units, each 18 mm). To be used in KNX installations for home and building automation.
