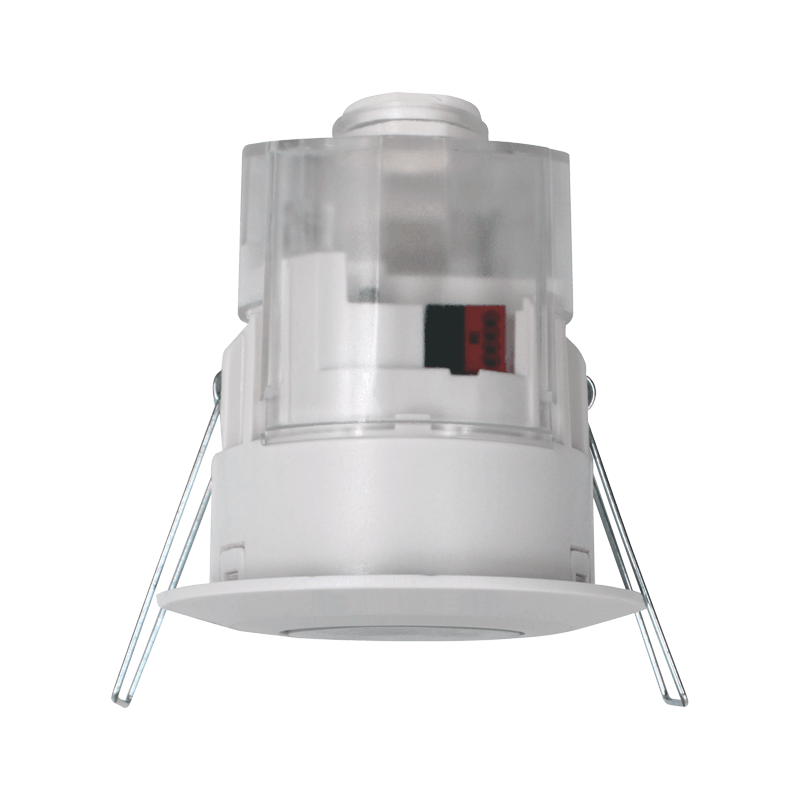

KNX presence sensors for ceiling/counter-ceiling mounting
EK-DF2-TP
NX presence sensors for ceiling/counter-ceiling mounting. 2 lighting channels (with constant brightness control), 2 HVAC channels and 1 alarm channel. Orientation light (standby). Control parameters can be set via ETS or dedicated IR remote control. Input for On/Off and dimming by KNX button. Power supply via bus. Use in home and building automation systems to KNX standard.
Detection range 4/9 m.

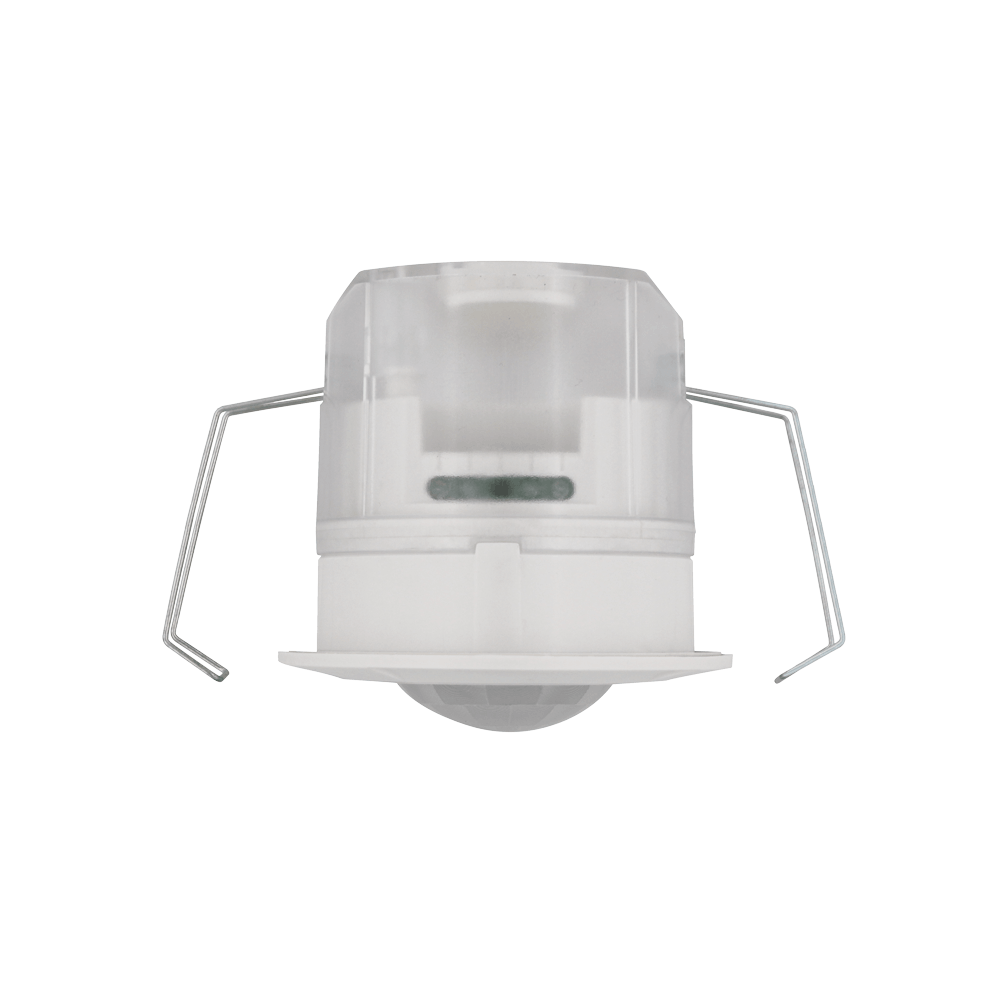

KNX presence sensor for ceiling mounting
EK-DG2-TP
KNX presence sensor for ceiling mounting. 2 lighting channels (with constant brightness control), 2 HVAC channels and 1 alarm channel. Orientation light (standby). Control parameters can be set via ETS or dedicated IR remote control. Input for On/Off and dimming by KNX button. Power supply via bus. Use in home and building automation systems to KNX standard.
Detection range 3/6/12 m

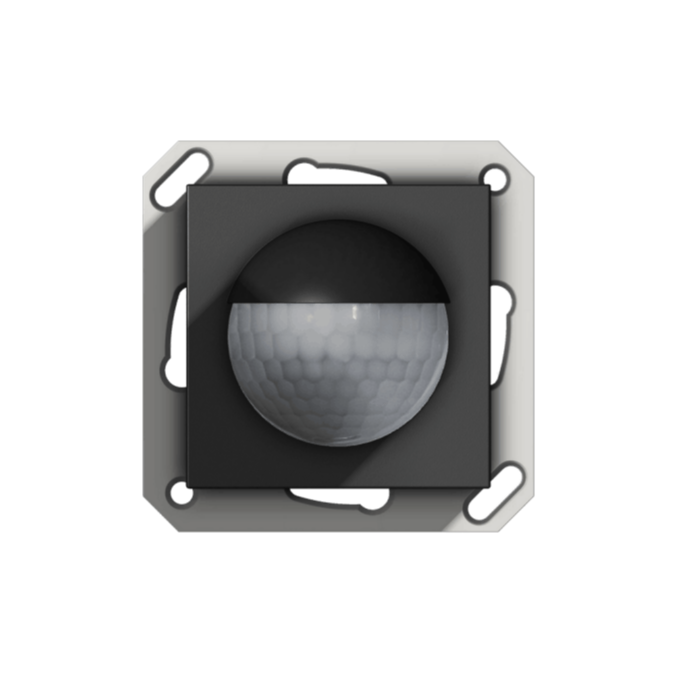

Movement sensor
EK-SM2-TP-GA
NX movement sensor for wall mounting. One channel for light and one channel for HVAC. Power supply via bus. To be used in KNX installations for home and building automation.
The device has to be to completed with a square plate (with 60 x 60 mm window) and a square frame of the series form or flank (to be ordered separately).
The product, with cover lens already included, is available in two colours:
EK-SM2-TP-GAA - Ice white
EK-SM2-TP-GAE - Intense black
