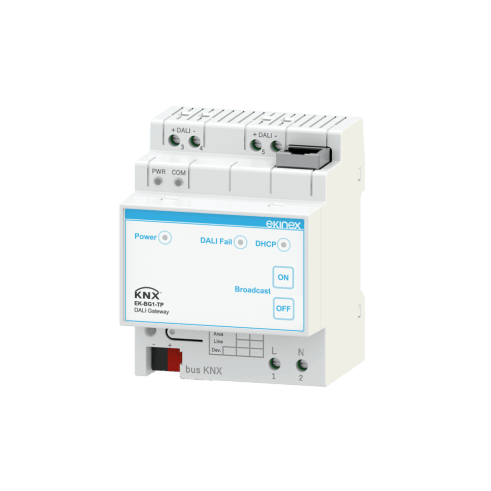

DALI - KNX gateway


EK-BG1-TP

Device working as a gateway (protocol conversion) between a DALI network and a KNX (TP) network. Configuration available through either ETS tool or dedicated PC software application, via the integrated Ethernet communication port. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

NEW Voice control interface

EK-BV1-TP

Device working as interface between home speakers with voice assistant of Apple, Google and Amazon and a KNX (TP) network. Possibility of installing several interfaces on the same bus system.

Täpsemalt
Mobirise

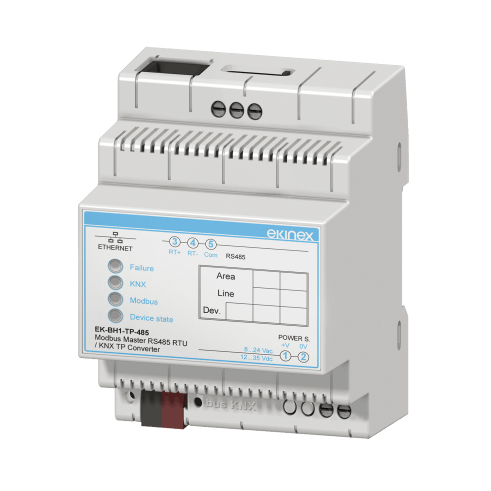

Modbus RS485 master - KNX gateway

EK-BH1-TP-485

Device working as a gateway (protocol conversion) between a RS485 serial network with Modbus RTU protocol and a KNX (TP) network. Master function on the Modbus RTU network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

Modbus TCP/IP master - KNX gateway

EK-BH1-TP-TCP

Device working as a gateway (protocol conversion) between an Ethernet network with Modbus RTU protocol and a KNX (TP) network. Master function on the Modbus RTU network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

BACnet IP server - KNX gateway

EK-BJ1-TP-IP

KNX bus device functioning as 4-channel input configurable for the connection of potential-free contacts or passive temperature sensors (NTC 10 kΩ at 25°C, to be ordered separately) and 4-channel output for control of low-consumption LED. Room thermostat function for 4 independent zones. Mounting in wall box or on 35 mm rail (EN 60715) with the support EK-SMG-35 (to be ordered separately). Power supply via bus. Bus terminal block included in the delivery. To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

BACnet MS/TP server - KNX gateway

EK-BJ1-TP-MSTP

Device working as a gateway (protocol conversion) between a BACnet MS/TP (Master Slave Token Passed) network on serial RS485 line and a KNX (TP) network. Server function on the BACnet MS/TP network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

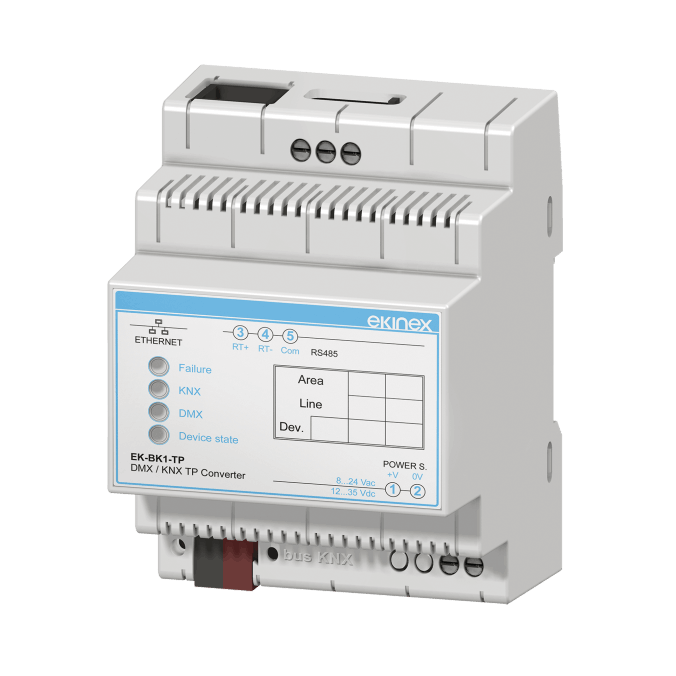

DMX - KNX gateway


EK-BK1-TP

Device working as a gateway (protocol conversion) between a DMX network and a KNX (TP) network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
Mobirise

M-Bus Master - KNX gateway


EK-BM1-TP-XX

Device working as a gateway (protocol conversion) between a M-Bus network and a KNX (TP) network. Master function on the M-Bus network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

The device is available in four versions:

EK-BM1-TP-20 (max. 20 M-Bus devices)
EK-BM1-TP-40 (max. 40 M-Bus devices)
EK-BM1-TP-80 (max. 80 M-Bus devices)
EK-BM1-TP-160 (max. 160 M-Bus devices)

Täpsemalt
Mobirise

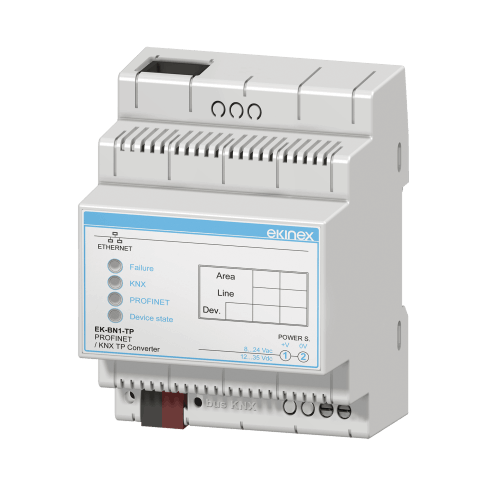

PROFINET - KNX gateway

EK-BN1-TP

Device working as a gateway (protocol conversion) between a PROFINET network and a KNX (TP) network. Slave function on PROFINET network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

Täpsemalt
